Knowledgebase

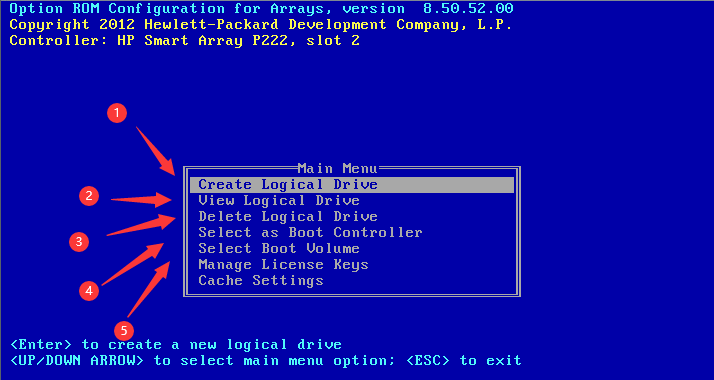

1: create logical drive Select the hard disk as raid, the ones that have been raid will not be displayed

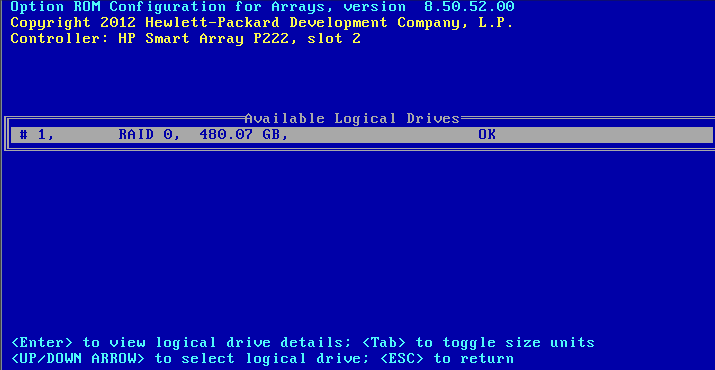

2: view logical drive to view what raid the hard disk has made, the ones that are not raid will not be displayed

3: delete logical drive select the raid to be deleted

4: select as boot controller Select the prepared raid to start the system (as the first hard disk, hp will not enter the system if it is not the No. 1 hard disk)

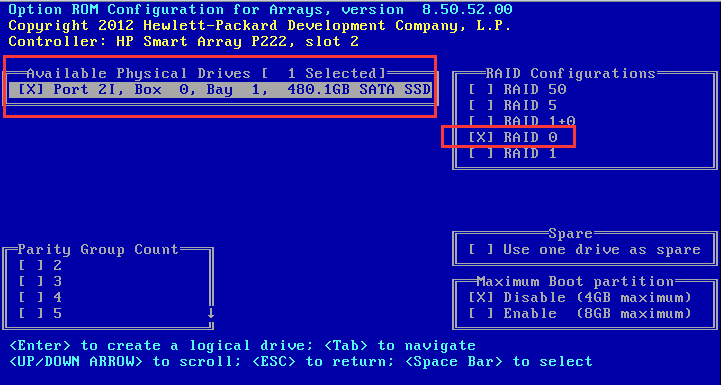

create logical drive
Right: The red box is to select the hard disk that needs to be raid
Left: The red box is the raid that needs to be selected

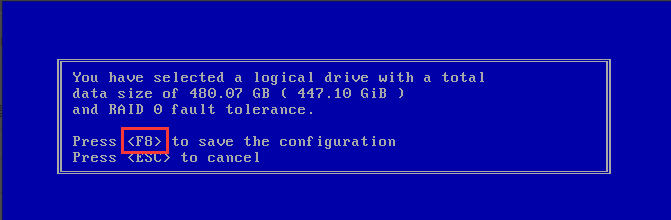

when finish, press F8
